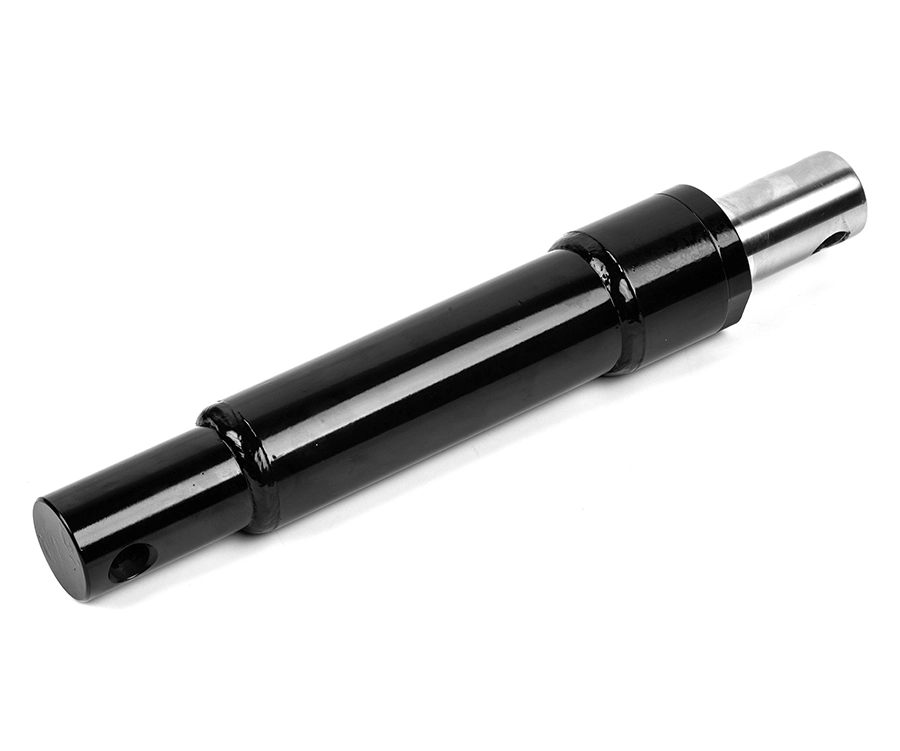

HUTCHIN's single-acting snow plow hydraulic cylinders are heavy-duty welded, can withstand heavy side loads and can be used as replacements for snow plow equipments from well-know brands such as FISHER, MEYER, WESTERN, MONARCH and ARCTIC. Double-acting and custom snow plow hydraulic cylinders are available to meet your specific needs.
The Snowplow Hydraulic Cylinder is a crucial component of snowplow equipment. The hydraulic cylinder for snow plow is designed to provide the necessary force and power to lift and lower the snowplow blade. This hydraulic cylinder for snow plow is specifically engineered to withstand harsh winter conditions and heavy-duty use.
Operating pressure: 3000PSI
Applications: Snow plowing
Materials: Ductile iron for Piston; Hard chrome plated steel rod; Honed steel tube, precision finished
Seals: Hallite
Ports: NPT, SAE, BSP available
Color: Standard gloss black paint; Custom color available upon request
Package: Wooden crate reinforced with iron frame
| Model | Bore | Stroke | Pin Hole | Retracted | Weight(LB) | Port | |
| FISHER Replacement | |||||||
| #A318 | SPF151010 | 1 1/2" | 10" | 1.000" | 18.750" | 15 | 1/4NPT |
| #A3660 | SPF151012 | 1 1/2" | 12" | 1.000" | 20.750" | 16 | 1/4NPT |
| MEYER Replacement | |||||||
| #05984 | SPM150606 | 1 1/2" | 6.375" | 0.625" | 12.000" | 10 | 1/4NPT |
| #05810 | SPM151006 | 1 1/2" | 10.375" | 0.625" | 16.063" | 14 | 1/4NPT |
| #05437 | SPM151206 | 1 1/2" | 12" | 0.625 " | 18.000" | 15 | 1/4NPT |
| SPM200607 | 2" | 6" | 0.750" | 13.188" | 17 | 1/4NPT | |
| #05752 | SPM201206 | 2" | 12" | 0.625" | 18.000" | 24 | 1/4NPT |
| WESTERN Replacement | |||||||
| #25200 | SPW150607 | 1 1/2" | 6.063" | 0.750" | 12.937" | 1 1 | 1/4NPT |
| SPW150807 | 1 1/2 " | 8" | 0.750" | 15.250" | 12 | 1/4 NPT | |
| #56102 | SPW151007 | 1 1/2" | 10" | 0.750" | 17.250" | 14 | 1/4 NPT |
| #25209 | SPW151010 | 1 1/2" | io" | 1.000" | 17.000" | 14 | 1/4NPT |
| SPW201010 | 2" | 10" | 1.000" | 17.250" | 22 | 1/4NPT | |
| #25878 | SPW201610 | 2" | 16.375" | 1.000" | 23.625" | 31 | 1/4NPT |
| MONARCH Replacement | |||||||
| SPMN151010 | 1 1/2" | 10" | 1.000" | 17.000" | 14 | 1/4NPT | |
| SPMN151210 | 1 1/2" | 12" | 1.000" | 19.000" | 15 | 1/4NPT | |
| ARTIC Replacement | |||||||
| SPA151007 | 1 1/2" | 10" | 0.750" | 17.000" | 14 | 1/4NPT | |
| SPA151207 | 1 1/2" | 12" | 0.750" | 19.000" | 16 | 1/4NPT | |
