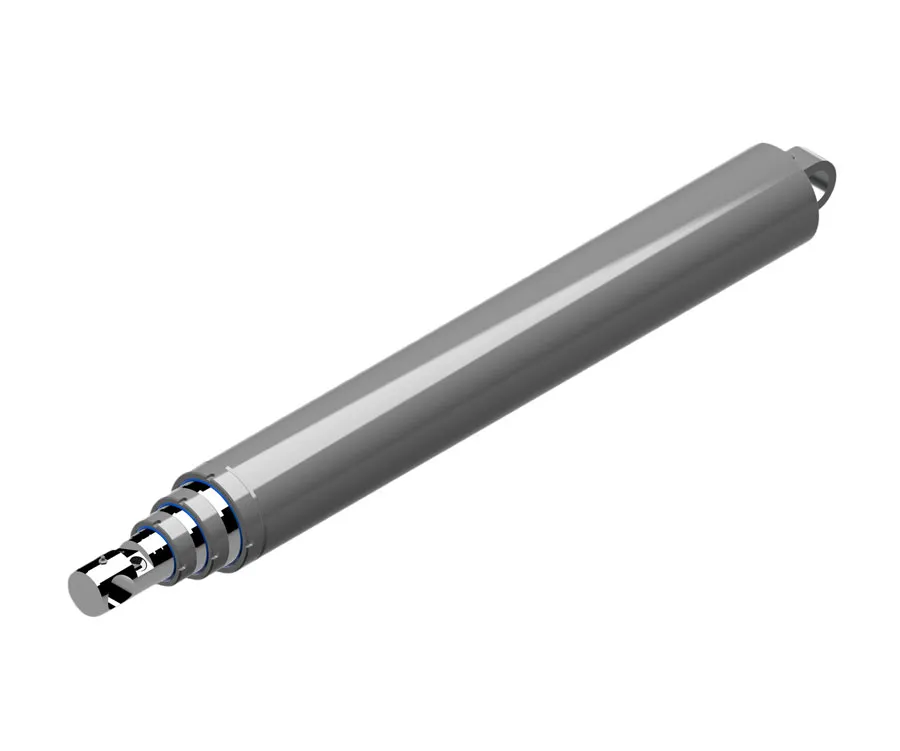

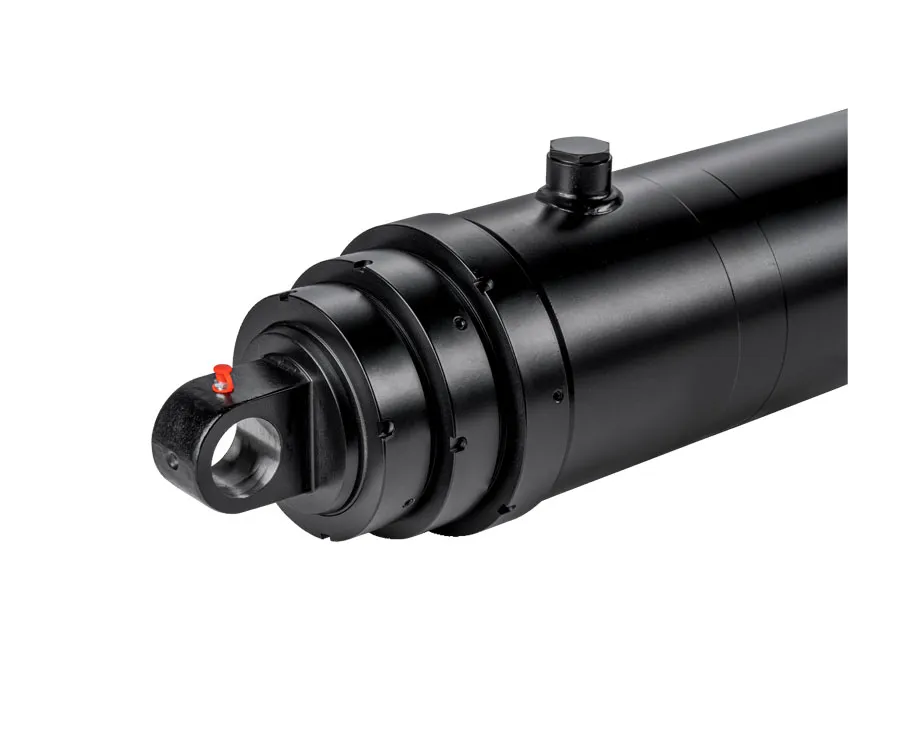

Featuring multiple nested stages, the telescopic cylinders achieve a long working stroke from a minimal retracted profile. HUTCHIN designs and manufactures application-specific telescopic cylinders to withstand demanding environments. Typical applications for our telescopic cylinders span across heavy-duty sectors, including dump trucks, waste management vehicles, and farming machinery.
Precision Engineered Telescopic Cylinders
The telescopic cylinders are designed with multiple nested stages to deliver extended stroke performance from a compact retracted form. At Hutchin Hydraulic, we develop tailored telescopic cylinder solutions, ensuring an optimal match for your specific operational requirements.
Our cylinders are available in three primary configurations, each designed for distinct operational needs:
Single-Acting: Extension is powered hydraulically, while retraction relies on external forces such as gravity or a mechanical load.
Double-Acting: Hydraulic power controls both extension and retraction for precise, full-cycle operation.
Partially Double-Acting: Hydraulic pressure initiates extension and partial retraction, with the remaining retraction completed by external forces.
Customizable Features & Specialized Options
We offer a range of specialized enhancements to meet advanced application demands:

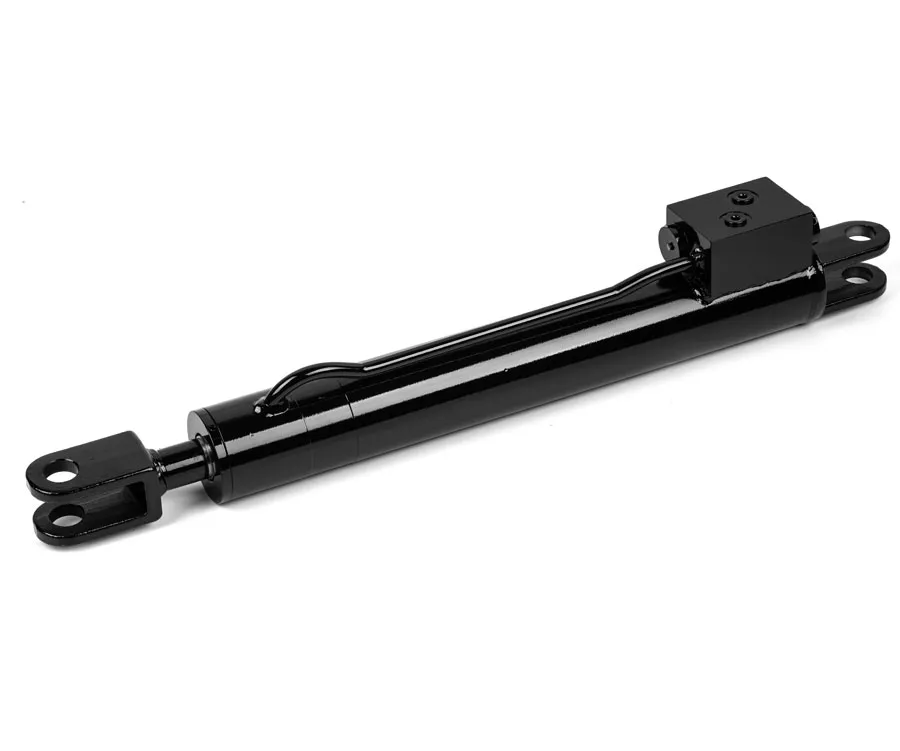

• Integrated Valves for simplified system design
• Integrated Linear Sensors for position monitoring and control
• Skip-a-Sleeve Designs to enhance retraction force in double-acting systems
• 4,000 PSI Pressure Rated Models for high-load applications • Load-Holding Piston Seals for secure operation in suspended or vertical applications
Hutchin Hydraulic – Engineered to perform in the most demanding conditions.
