For applications requiring counterbalance or pilot-operated check valves, mounting them directly to the cylinder is the optimal solution. This configuration ensures continued load-holding protection even in the event of a hose failure. From single or dual counterbalance valves to complex integrated hydraulic circuits, our engineering team can design cylinders tailored to your system needs.

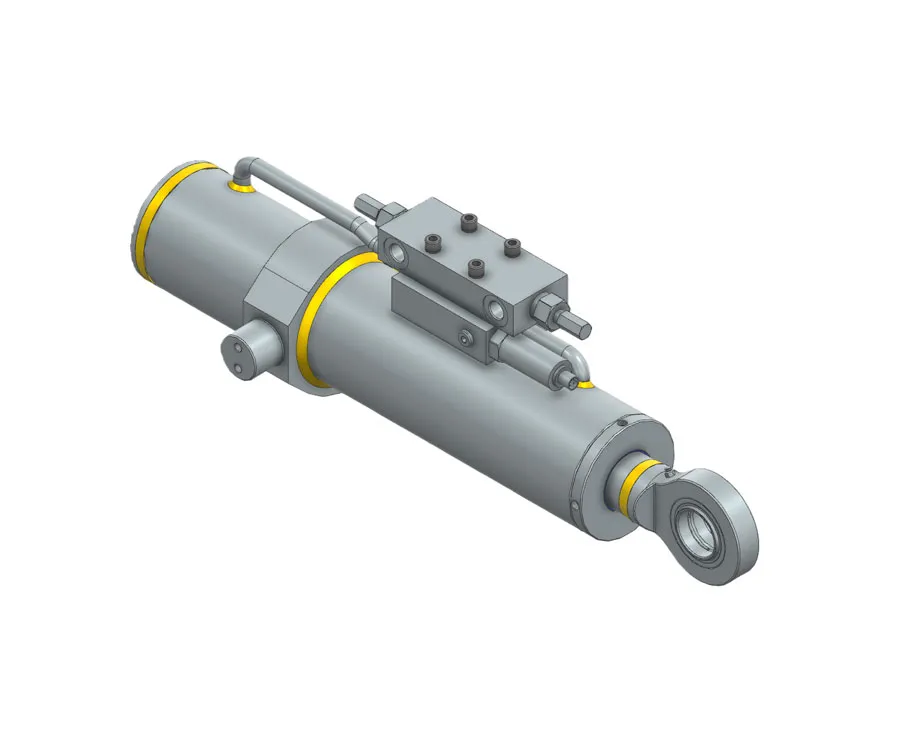

Safety, Performance & Aesthetics with Custom Integrated Valve Hydraulic Cylinders
When counterbalance or pilot-operated check valves are required in your application, the optimal solution is to mount them directly to the cylinder. This ensures continued load-holding protection—even in the event of a hose failure. From simple single or dual counterbalance valves to complex integrated circuits, our team can design your cylinders with compact valve manifolds for direct mounting.
Direct mounting eliminates the need for
• Additional hardware
• Mounting brackets
• External fluid connectors
• Excess assembly time
Features & Specifications for valve integrated cylinder from HUTCHIN
Key Features
• Flexible valve and porting locations
• Clean, sanitary plumbing for improved aesthetics
• Welded fluid lines eliminate threaded connections
• Multiple built-in safety benefits
Common Valve Integration Options
• Counterbalance Valves
• Pilot-Operated Check Valves
• Solenoid Valves
• Relief Valves
• Sequence Valves
